Air 2 Inch 50MM Y-50 160Psi General Pressure Gauges 1/4''NPT Bottom

Product Categories

Yueqing Jintu Trading Co.,Ltd

Contact Now

Model Number : Y-50 (0-160 psi)

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 300,000 pcs per month

Delivery Time : 30-50 work days

Packaging Details : Inner box for each pressure gauge

Product Name : General Pressure gauge

Size : 1-1/2",2", 2-1/2",3"

Range : 0-160 psi

Accuracy : 2.5%

Connection : 1/8", 1/4" NPT/BSP/BSPT or made as request

Case : Black painted steel

Pointer : Black painted aluminum

Window : glass window

Contact Now

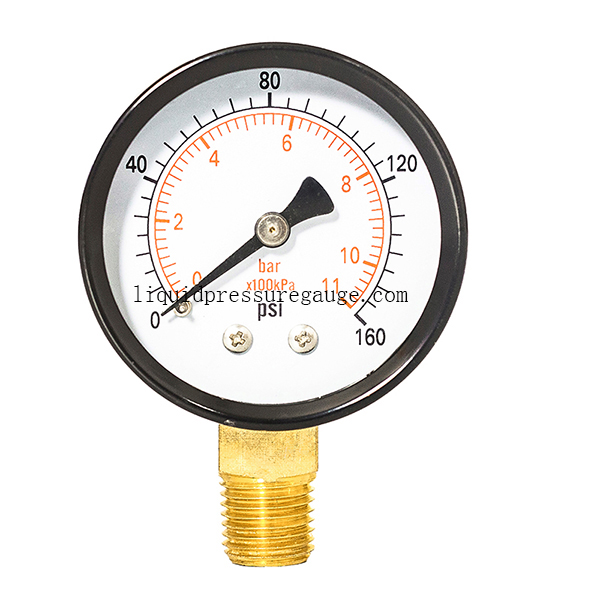

2" General Pressure Gauge,0-160 psi/bar/Kpa,1/4 NPT Lower Mount, Black painted Steel case and Brass Connection

It measures pressure for gas, liquid etc media which has no corrosive effects on copper, copper alloy. The measuring range covers 0-160 psi.

Features:

- Range: 0-160 psi

- Glass window

- Steel case

- Brass internal

- Dial: 2"

- Opitional: 2-1/2"

Product name	General pressure gauge
Aplication	It can be used for measuring pressure of air, gas or liquid which does not corrode copper alloy.
Face dia	1-1/2",2",2-1/2", 3"
Case	black painted steel
Ring	black painted steel
Connetion & socket	brass
Bourdon tube	copper alloy
Pointer and dial	aluminum
Window	glass
Range	Vacuum, compound, 0-6000 psi
Mount	lower mount

Air 2 Inch 50MM Y-50 160Psi General Pressure Gauges 1/4''NPT Bottom
